Stirring Tank Stirring Tank

Stirring tank, which can also be called bucket mixer, agitation vat and mixing barrel, is made of stainless steel material and equipped with mobile washer, which is conducive to ma... Bookmark and Share

PDF (126.0KB)Get Quote
Introduction

Stirring tank, which can also be called bucket mixer, agitation vat and mixing barrel, is made of stainless steel material and equipped with mobile washer, which is conducive to material feeding. The stirring main shaft can adopt fixed rotating speed or frequency control of motor speed according to the requirement of the users, and this mixing barrel has even mixing, no precipitation and buildup and can realize the even mixing of the pulp.

The bucket mixer is suitable for various types of metal ores, and it is mainly used for the material stirring before the flotation separation to fully mix the reagent and ore pulp and also for the material stirring of other non-metallic minerals.

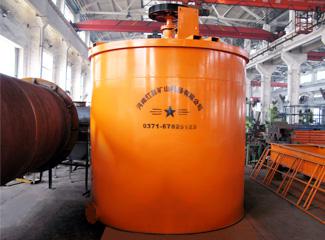

Stirring tank

Features

The bucket barrel produced by our company has many advantages such as stable operation, reliable quality, low noise, long service life, convenient installation and maintenance, beautiful appearance and convenient operation.

Principle

The pneumatic diaphragm pump uses compressed air as the power source, so that this machine can be used for conveying materials with high content of strong abrasive particles to realize the extraction and conveyance of the pulp. It adopts circulating filtration pipeline system which can separately realize the three functions of ore pulp filtration, ore pulp output and ethane glycol input. When the machine works, the materials inside the machine will move back and force under the effect of the rotor and the buildup and propeller will drive the materials to rotate along the internal wall of the chute, to reach soft, fast and even mixing.

Technical Data
Category Specification
 Model
Dimensions Effective
cubage(m³)
Rotate
speed(r/min)
Motor
power
(kw)
Dimensions
(L×W×H)
(mm)
Total
weight
(kg)
Diameter
(mm)
Height
(mm)
Agitating
 tank
XB-10×10 1000 1000 0.58 390 1.5 1130×1130×1521 1050
XB-12×12 1200 1200 1.18 390 2.2 1130×1130×1721 1160
XB-15×15 1500 1500 2.2 280 3.0 1750×1640×2190 1270
XB-20×20 2000 2000 5.6 210 5.5 2380×2160×2850 1700
XB-25×25 2500 2500 11.2 190 7.5 2990×2720×3540 3500
XB-30×30 3000 3000 19 140 18.5 4030×3270×3010 5200
XB-35×35 3500 3500 29 230 30 3920×3740×4970 6630
XB-40×40 4000 4000 45 210 37 4520×4320×5570 7830
Lifting
type
XBT-10×15 1000 1500 1 510 2.2 1130×1130×2070 1250
XBT-15×20 1500 2000 2.9 400 4 1636×1768×2785 1677
XBT-20×20 2000 2000 5.6 312 11 2180×2220×3015 3100
High-
efficiency
 leaching
 tank
XF-20×20 2000 2000 7.07 82.5 1.5 2032×2032×3595 2400
XF-25×30 2500 3000 13.5 57.6 2.2 2532×2532×4152 3670
XF-30×30 3000 3000 22.97 50.0 2.2 3180×3180×4673 5340
XF-35×40 3500 4000 35.6 41.0 4.0 3685×3685×5314 7140
XF-40×45 4000 4500 52.78 33.5 4.0 4185×4185×5814 9300
XF-45×50 4500 5000 74.75 33.5 5.5 4685×4685×6466 10500
XF-50×56 5000 5600 102.1 30.6 5.5 5185×5185×6975 12300
XF-55×60 5500 6000 135.4 24.4 7.5 5670×5670×7569 13500
