High Efficiency Concentrator
High efficiency concentrator, which can also be called high efficiency thickner, is mainly used for the concentrate of concentration or the dehydration of the tailings before the f...

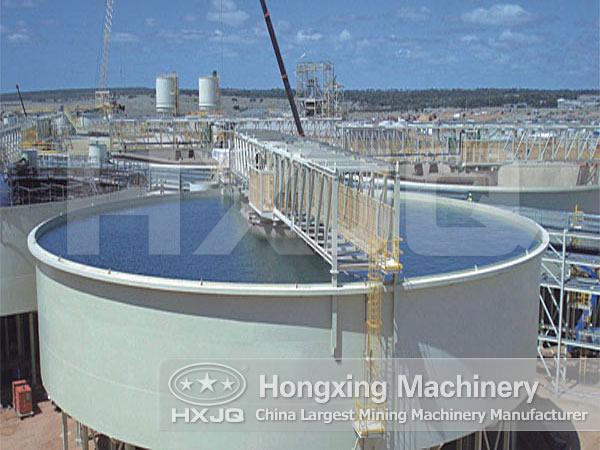

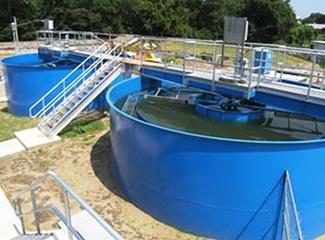

High efficiency concentrator, which can also be called high efficiency thickner, is mainly used for the concentrate of concentration or the dehydration of the tailings before the filtration process in the ore beneficiation plant, and also used for the concentration and purification of the ore pulp with solid in such industries as coal, chemistry, building material and water source and sewage treatment industry. Sometimes in the separation process, to improve the ore feeding density for the next procedure and improve the separation effect, the middlings are also needed to be concentrated.
(1) Add flocculating agent to increase the grain size of the falling solid particles to accelerate the falling process.
(2) Install an inclined board to shorten the falling distance of the ore particles and increase the falling area.
(3) Perform the functions of flocculating, filtering, concentrating and improving the processing quantity.
(4) High efficiency concentrator is equipped with comprehensive automatic control device.
The solid particles hanging in the ore pulp of the concentration basin fall under the gravity and the upper part will be clear water, so that the solid particles will be separated from the liquid. The slurry deposited on the bottom of the concentration basin is continuously scrapped by the rake scraper to central discharging port of the bottom of the basin and discharged, and the clear water will overflow along the upper edge of the concentration basin. High efficiency concentrator is a dehydration machine that is able to continuously work for a long time.
| Specification | Concentration pond （m） | Deposit square(m2) | Harrow part | Motor | Processing capacity (t/d) | Total weight（t） | |||||
| Model | Specification | Inner diameter | Depth | Pond degree | Method | Height（m） | Rotation time（min/r） | Driving | Lifting | ||
| NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | Manual | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 | 1.9 |
| NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | Manual | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 | 4.3 |
| NZS-6 | Φ6m | 6 | 3 | 28.3 | Manual | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 | 10.7 |
| NZSF-6 | Φ6m | 6 | 3 | 28.3 | Manual | ---- | 3.7 | Y90S-4 1.1KW | ---- | 62 | 5.1 |
| NZ-9 | Φ9m | 9 | 3 | 63.6 | Auto | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 | 8.5 |
| NZS-9 | Φ9m | 9 | 3 | 63.6 | Manual | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 | 7.5 |
| NZS-12 | Φ12m | 12 | 3.5 | 113 | Manual | 0.25 | 5.28 | JTC752A-44 5.2KW | ---- | 250 | 11.1 |
| NZ-15 | Φ15m | 15 | 4.4 | 176 | Auto | 0.4 | 10.4J | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 | 26.0 |
| NZ-20 | Φ20m | 20 | 4.4 | 314 | Auto | 0.4 | 10.4 | Y100L1-4 5.2KW | Y112M-6 2.2KW | 960 | 28.9 |
| NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | Y672A-44 5.2KW | YCJ132-S 1.5KW | ---- | 36.6 |
| NZS-45 | Φ45m | 45 | 4.633 | 1590 | Manual | ---- | 20 | Y672A-44 5.2KW | YCJ160-S 2.2KW | 515 | 54.4 |
| NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW | ---- | 390 | 12.6 |
| NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | 560 | 11.6 |
| NQ-24 | Φ24m | 24 | 3.4 | 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 | 26.6 |
| NQ-30 | Φ30m | 30 | 3.6 | 707 | ---- | 16 | Y160M-6 7.5KW | ---- | 1570 | 30.9 | |
| NJ-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 | JZT252-4 11KW | Y160M-6 7.5KW | 1600 | 63.3 |
| NT-45 | Φ45m | 45 | 5.05 | 1590 | Auto | ---- | 19.3 | Y160L-6 11KW | ---- | 2400 | 66.8 |
| NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6 15kw |
---- | 6250 | 89.1 |
| NT-100 | Φ100m | 100 | 5.65 | 7846 | ---- | ---- | 43 | Y180L-6 15KW | ---- | 3030 | 214.9 |
