Cement Rotary Kiln Cement Rotary Kiln

Cement rotary kiln is the main equipment for calcinating cement clinker and it is widely used in cement, metallurgy and chemistry.This machine is mainly composed of cylinder, suppo... Bookmark and Share

PDF (190.0KB)Get Quote
Introduction

Cement rotary kiln is the main equipment for calcinating cement clinker and it is widely used in cement, metallurgy and chemistry.

This machine is mainly composed of cylinder, supporting device, supporting device with catch wheel, transmission device, movable kiln head, kiln tail sealing device and calcining device.

Features

Simple structure, reliable operation and easy control of the production process.

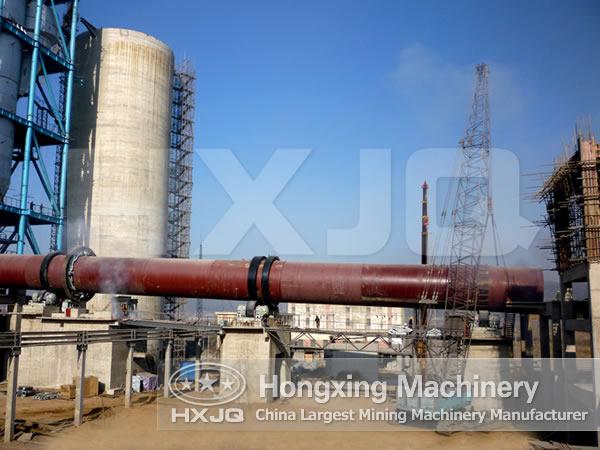

Cement Rotary Kiln

Principle

The pulverized coal (or natural gas) inside the rotary kiln is burned to produce heat which will heat the materials through gaseous conductance or radiation, and in the meantime, with the constant rotation of the cylinder according to the designed inclination and rotating speed, the materials will periodically roll forward inside the kiln, so that the raw materials will be sent from the feeding end to the discharging end and burnt to be qualified clinker during the time period of going through the rotary kiln, thus reaching the goal of high output, high quality and low energy consumption.

Technical Data
Product specifications(m) Kiln dimensions Capacity(t/d) Rotation speed(r/min) Motor power(kw) Total weight(t) Note
Diameter(m) Length(m) Obliquity(%)
φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 Kiln with shaft cyclone preheater
φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 ----
φ2.5×54 2.5 54 3.5 204 0.48-1.45 55 196.29 ----
φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ----
φ2.8×44 2.8 44 3.5 400 0.437-2.18 55 201.58 Outside disassemble kiln
φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ----
φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 Outside disassemble kiln
φ3.0×60 3 60 3.5 300 0.3-2 100 310 Alumyte-alumina forge kiln
φ3.2×50 3.2 50 4 1000 0.6-3 125 278 Outside disassemble kiln
φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 Kiln with preheater precalcine
φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 Kiln with preheater precalcine
φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating kiln for using ofterheat
φ4.0×56 4 56 4 2300 0.41-4.07 315 456 Kiln with preheater precalcine
φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 Kiln with preheater precalcine
φ4.2×60 4.2 60 4 2750 0.4-3.98 375 633 Kiln with preheater precalcine
φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 Kiln with preheater precalcine
φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 Kiln with preheater precalcine
φ4.7×74 4.7 74 4 4500 0.35-4 630 849 Kiln with preheater precalcine
φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 Kiln with preheater precalcine
φ5.0×74 5 74 4 6000 0.35-4 710 944 Kiln with preheater precalcine
φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 Kiln with preheater precalcine
φ6.0×95 6 95 4 10000 Max5 950×2 1659 Kiln with preheater precalcine
