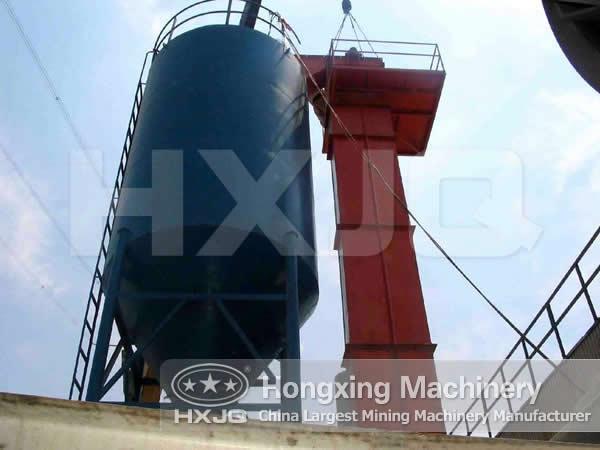

Bucket Elevator
Bucket elevator, also called elevator bucket, is a continuous conveying machine that makes use of a series of hoppers evenly solidly jointed onto the traction device and vertical l...
Bucket elevator, also called elevator bucket, is a continuous conveying machine that makes use of a series of hoppers evenly solidly jointed onto the traction device and vertical lifts the materials. Elevator bucket can be divided into three types: ring chain elevator, plate chain elevator and belt conveyor.
Big conveying capacity, high elevating height, stable and reliable operation and long service life.
The hoppers scoop up the materials from the lower storage bin and lift the materials with the conveyor belt or chain to the top, and after turning around the top wheel, the hoppers will roll down and pour the materials into the receiving chute.
| Specification | Max.lifting height (m) |
Conveying capacity (m3/n) |
Pitch of buckets (mm) |
Motor power (kw) |
| 160 type | 28 | 3-8 | 500 | 3-7.5 |
| 200 type | 31.5 | 6-15 | 500 | 3-7.5 |
| 250 type | 30.16 | 10-25 | 500 | 4-11 |
| 300 type | 30.16 | 25-35 | 500 | 5.5-15 |
| 350 type | 31 | 19-40 | 600 | 7.5-18.5 |
| 400 type | 32 | 35-50 | 600 | 7.5-22 |
| 450 type | 32.7 | 42-60 | 600 | 7.5-22 |
