Belt Conveyor Belt Conveyor

Belt conveyor is a machine used for continuously conveying the materials driven by frictional force. It can from a material conveying flow from the original material supplying poin... Bookmark and Share

PDF (154.0KB)Get Quote
Introduction

Belt conveyor is a machine used for continuously conveying the materials driven by frictional force. It can from a material conveying flow from the original material supplying point to the final discharging point on the conveyance line. The conveyor belt can convey not only broken and bulk materials, but end products. Other than pure material conveyance, it can also be combined with the technical process of the production process to form rhythmed line production conveyance line.

Features

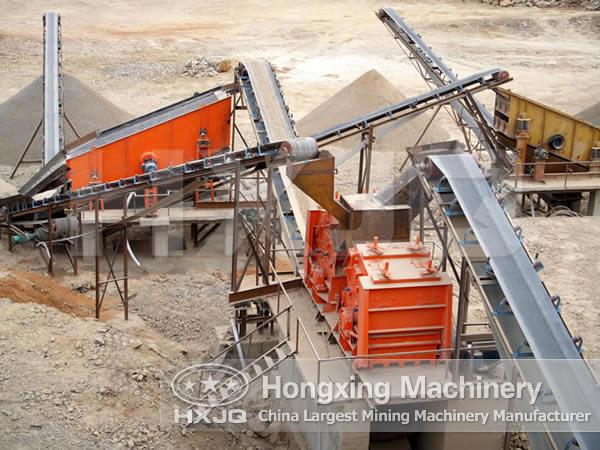

Belt Conveyor

This series of conveying equipment can be used in the temperature ranges of -20℃~+40℃ and the temperature of the materials to be conveyed should be below 50℃. The direction of the conveyor is easy to change and the biggest direction change can reach 180°. Every unit of the conveyor is composed of eight roller cylinders and every unit can be independently used or combined to be used and the installation is very convenient. The conveyor can freely expand or extract, and the longest and the shortest ratio of one unit can reach three times.

Principle

The convery belt is mainly composed of the two end rollers and the closed conveyor belts tightly hitched up on them. The rollers driving the convery belt to rotate is called driving roller, and the other one that is used for change the moving direction f other convery belt is called redirection roller. The driving roller is driven by the motor through reducer and the convery belt moves relying on the frictional force between the driving roller and the convery belt. The driving roller is generally installed on the discharging end to increase the traction force, which is conducive to the movement of the elevating conveyor belt. The materials are fed in from the feeding end and fall onto the moving elevating conveyor belt, and relying on the frictional force of the conveyor, the materials will be moved to the discharging end and be discharged.

Technical Data
Belt width(mm) Conveying length(m)
Power(kw)
Conveying speed(m/s) Conveying amount(t/h)

500

<=12
3
12-20
4-5.5
20-30
5.5-7.5

1.3-1.6

78-191

650

<=12
4
12-20
5.5
20-30
7.5-11

1.3-1.6

131-323

800

<=6
4
6-15
5.5
15-30
7.5-15

1.3-1.6

278-546

1000

<=10
5.5
10-20
7.5-11
20-40
11-22

1.3-2.0

435-853

1200

<=10
7.5
10-20
11
20-40
15-30

1.3-2.0

655-1284

1400

<=10
11
10-20
18.5
20-40
22-37

1.3-2.0

893-1745

1600

<=10
15
10-20
22
20-40
30-45

1.3-2.0

1069-2195
