Hammer Crusher Hammer Crusher

Hammer crusher, which is also called hammer mill or hammer mill crusher, is a machine making use of the hammer rotating with high speed to impact the materials and crush them along... Bookmark and Share

PDF (154.0KB)Get Quote
Introduction

Hammer crusher, which is also called hammer mill or hammer mill crusher, is a machine making use of the hammer rotating with high speed to impact the materials and crush them along the natural crack, bedding surface and joint surface.

Hammer crusher machine is suitable for crushing crisp and medium hard materials whose water content is not high such as limestone, coal, shale, gangue, chalk, asbestos ore and coke in building material, chemistry, power, mine and metallurgy and other industrial departments.

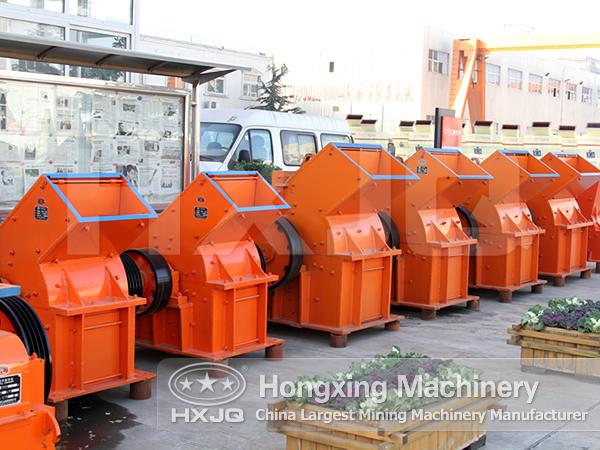

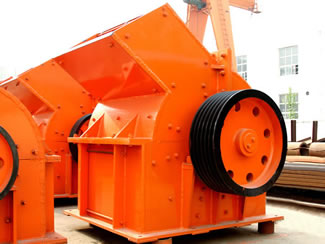

Hammer Crusher

Features

1. The working hammers are casted with new technology and have the advantages of abrasive resistance and impact resistance.

2. The granularity can be adjusted according to the customers’ requirement.

3. Hammering machine adopts sealing structure, which solves the dust pollution inside crushing room and the ash leakage of the machine.

4. The whole design has such advantages as attractive appearance, compact structure, few quick-wear parts and convenient maintenance, making it ideal for upgrading and updating.

Principle

The main electric motor drives the rotor which is installed with big belt wheel through the coupling V belt and the ores are fed to the feeding mouth of the crusher by heavy type feeder machine. The ores will fall onto the feeding roller with damping device, and two feeding roller rotating at the same direction will send the ores onto the rotor rotating with high speed. Then the hammers will hit the ores with high linear speed, and at the same time, crush or throw up the materials, and the materials that are thrown up will hit the impact lining board or hit the other materials and then be crushed, and brought by the hammers to the crushing board and the grate working area to continue to be hit, squeezed and crushed, until they are crushed to the sized smaller than the gap of the grating bar, and finally discharged from the bottom of the crushing chamber.

Technical Data
Model
Specification
Feeding
Size
(mm)
Discharging
Size
(mm)
Capacity
(m³/h)
Motor
power
(kw)
Total
weight(t)
Dimensions
(L×W×H)(mm)
PCΦ400×300 ≤200 ≤25 5-10 11 0.8 900×670×860
PCΦ600×400 ≤250 ≤30 10-22 22 2.26 1200×1050×1200
PCΦ800×600 ≤250 ≤35 18-40 55 4.8 1310×1180×1310
PCΦ1000×800 ≤350 ≤35 25-50 75 5.9 1600×1390×1575
PCΦ1000×1000 ≤350 ≤35 30-55 90 8 1800×1590×1775
PCΦ1200×1200 ≤350 ≤35 50-80 132-160 19.2 2060×1600×1890
PCΦ1400×1400 ≤350 ≤35 50-100 280 32 2365×1870×2220
PCΦ1600×1600 ≤350 ≤35 100-150 480 37.5 3050×2850×2800
