Combination Crusher Combination Crusher

Combination crusher, which can also be called compound crusher, is one of the main machines commonly used in sand making production line and stone production line. Compound crusher... Bookmark and Share

PDF (98.0KB)Get Quote
Introduction

Combination crusher, which can also be called compound crusher, is one of the main machines commonly used in sand making production line and stone production line. Compound crusher is a new type of fine crushing and coarse grinding product researched and manufactured by combining with the technology of the same crushing machines in domestic and foreign market and optimizing the main technological parameters. It is mainly used for crushing cement raw materials and clinker in medium and small-sized cement plant and provides an ideal fine crushing machine for the technical upgrading of the cement plant and the construction of new cement production line. In addition, combination crusher can also be used for crushing materials with medium hardness such as iron ore, sandstone, gypsum, blast furnace slag and lump coal.

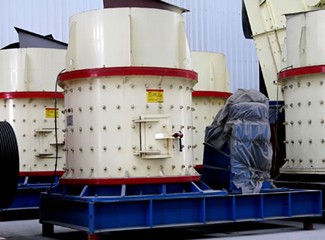

Combination Crusher

Features

Compound crusher is a new type of highly efficient fine crushing machine integrated with advantages of hammer crusher and impact crusher, and it has such outstanding advantages as big production capacity, high crushing efficiency, big crushing ratio, small abrasion amount, low energy consumption, good sealing performance, stable operation and convenient maintenance. In the building material industry, using this equipment to crush limestone, coal, coal gangue and cement clinker can greatly reduce the feeding granularity to the grinding mill and improve the output of the milling equipment, making it an ideal energy-saving crushing machine.

Principle

Materials fall from the upper part of the combination crusher into the impeller rotating with high speed. Under the high-speed centrifugal force, some part of the materials will have high-speed crush and grinding with the other part that are distributed around the impeller in the form of umbrella. After the materials hit with each other, they will form cortex in the space between the impeller and the machine frame, and after many times of mutual impact and friction, the materials will be crushed and finally discharged from the bottom of the machine, thus forming a closed-circuit cycle, and the screening machine will be adopted to control the granularity of the final products.

Technical Data
Model
800
1000
1250
1500
1750
Rotor
diameter
(mm)
650
800
1000
1250
1560
Cylinder
height(mm)
800
850
850
1000
1410
Main shaft
rotation
speed
(r/min)
1350
970
740
650
600
Feeding
size(mm)
50
70
100
100
100
Discharging
size (mm)
0-5
0-5
0-5
0-5
0-5
Processing
capacity (t/h)
5-15
10-30
20-60
30-80
40-100
Motor
Power(kw)
30
55
75
110
132
Rotation
speed
1440
1440
750
750
750
Dimensions
(L×W×H)(mm)
2200×860×1980
2700×1160×2000
2800×1400×2730
3100×1900×2300
3350×2100×2800
Total weight (t)
2.3
4.5
9.73
18.1
26.61
