Introduction

Classifiers is one of the ore beneficiation machines and the commonly used classifiers include spiral separator which can also be called screw classifiers and spiral classifier, rotary separator and density separators.

Spiral separator is mainly used in the metal ore beneficiation process to classify the ores according to their granularity relying on the falling speed of the ore particles in the liquid. Screw classifiers can be divided into high weir single-spiral classifier, high weir double-spiral classifier, immersed type single-spiral classifier and immersed type double-spiral classifier according to the height of the overflow weir.

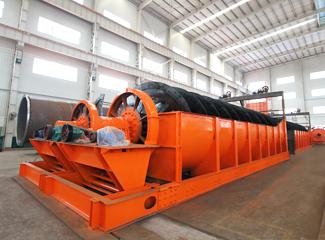

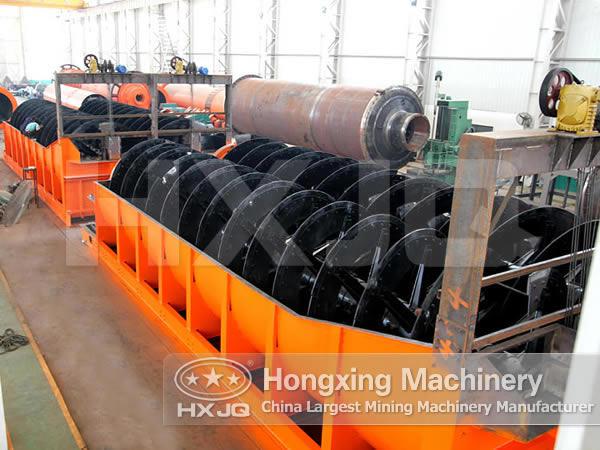

Spiral Separator

Features

This classifiers has such features as simple structure, reliable working condition and convenient operation.

Principle

Slantly install the water chute, and the dip angel is determined by configuration of the equipment in the technical production process. Transmission device drives the spiral to rotate inside the chute, and the finely ground ore pulp goes into the chute from the side feeding mouth, and on the bottom of the chute, a pulp precipitation area will be formed, and its superficial area and volume are determined by the dip angle of the chute and the height of the overflow weir. The spiral rotating with low speed can stir the ore pulp, and then light and fine particles will float on top to become overflow and be discharged from the overflow weir on the end edge of the water chute to flow into the next dressing procedure, and coarse and heavy particles will fall to the bottom of the chute to become recirculated sand and will be discharged from the ore discharging mouth of by the spiral.

Technical Data
Model Spiral
Diameter
(mm)
Trough
Length
(mm)
Spiral
rotate
speed
(r/min)
Processing
capacity(t/d)
Motor
Power
(kw ≤)
Dimensions
(mm≤)
Total
weight
(t)
Sand
-return
Overflow For
driving
For
lifting
Length Width Height
FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480 1.9
FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820 3.1
FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380 4.9
FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680 6.2
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920 11.0
2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110 15.8
2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920 17.6
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080 22.1
2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890 30.7
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490 20.5
FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340 28.5
2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490 35.5
2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640 48.7
FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970 26.8
FC-24 14130 6800 490 18.5 4 16580 2930 7190 41.0
2FG-24 9130 13600 1160 30 6 12710 5430 5690 45.8
2FC-24 14130 13700 910 37 8 17710 5430 8000 67.9
2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350 73.0
2FC-30 14300 23300 1410 40 8 17091 6640 8680 84.8
