Raw Material Mill Raw Material Mill

Raw material mill is the key equipment used for re-grinding the materials after they are crushed and batched. Raw material mill is widely used for grinding all kinds of ores and ot... Bookmark and Share

No PDFGet Quote
Introduction

Raw material mill is the key equipment used for re-grinding the materials after they are crushed and batched. Raw material mill is widely used for grinding all kinds of ores and other grindable materials in such production industries as cement, silicate product, new building material, refractory and glass and ceramics. Through the long time of exploration and summary in the design and production process, our company has formed series of products with different specifications and various types that can satisfy different crushing requirements.

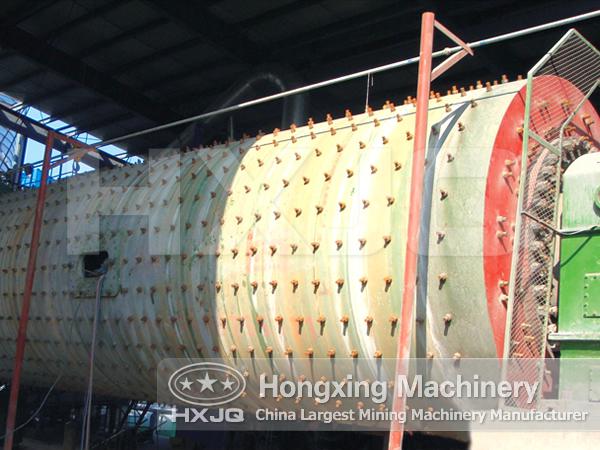

Raw Material Mill

Features

The cylinder adopts new types of classification lining boards and standard ladder-shaped lining boards, which increases the grinding surface area of the materials and makes the classification effect better and follow-up maintenance and changes easier. The new type of partition structure adopts adjustable lifting board and fixed lifting board, which is easy to install and maintain.

Principle

The rotation of the nether millstone drives the grinding roll to rotate, and the materials will move to the edge of the nether millstone under the eccentric force and will be meshed to the bottom of the grinding roll and crushed. The rotational speed of the nether millstone is very high, so that after the materials go into the nether millstone, they are not only crushed under the roll, but pushed to the edge and across the retention ring and will fall into the vane. Then the materials will be lifted by the high-speed airflow, and big-sized particles will fall back to the nether millstone, and small-sized particles will brought by the airflow into the separator. Under the rotating fan blade, the small-sized particles will be separated, and the coarse powders will be returned to the nether millstone for regrinding and qualified powders will be brought out of the mill with the airflow.

Technical Data
Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.5×5.7 Open flow Brim ZD40 3.55 130 4.5-6 25.8
Φ1.83×6.4 Open flow Brim ZD60 4.5 210 7.5-15 43
Φ2.2×6.5 Circle flow Brim ZD70 5 380 14-26 60
Φ2.4×7 Circle flow Brim ZD70 5 475 24-28 81
Φ2.4×10 Circle flow Brim ZD80-4-Ⅱ 6.435 570 32-36 118
Φ2.6×10 Circle flow Brim JDX710 6.3 800 45-50 130
Φ3×9 Open flow Brim JDX800 6.3 1000 55-60 158
Φ3.2×9 Circle flow Brim MBY900 7.1 1250 62-65 195
Φ3.5×10 Open flow Brim JDX900 5.84 1250 70-75 200
Φ3.8×7.5 Circle flow Brim JDX900 5.6 1600 80 233
Φ4.6×10+3.5 Circle flow Central shaft JQS3550 15.1 3550 190 415
Φ4.6×10.5+3.5 Circle flow Central shaft JQS3550 15.1 3550 210 476
