Introduction

Rotary kiln refers to the revolving kiln which is widely used in many production industries such as building material, metallurgy, chemistry and environmental protection and its application originated from cement production. According to the different material types to be processed, circumgyrate kiln can be divided into cement kiln, metallurgy chemistry kiln and lime kiln. Cement kiln is mainly used for calcining cement clinker and it can be divided into dry process production cement kiln and wet process production cement kiln.

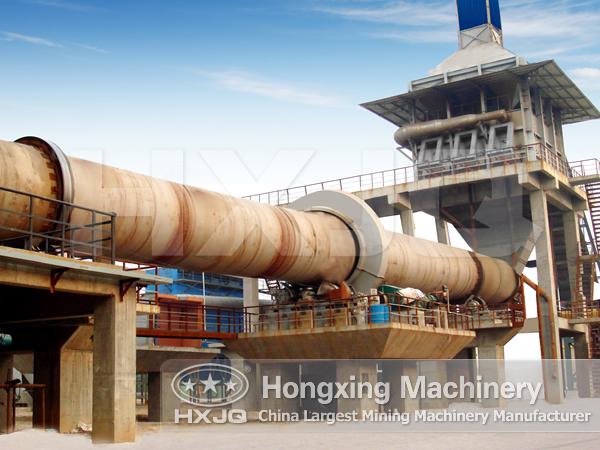

Rotary Kiln

Features

The preheating condition of the materials is good, the uneven material feeding phenomenon is greatly reduced, the running rate of the kiln is high and the operation of the machine is stable.

Principle

Materials go from the kiln tail to the kiln for calcining. Due to the inclination of the cylinder and the slow rotation, the materials will roll along the peripheral direction and move along the axial direction to continue to complete the decomposition and calcinations process. In the end, the generated clinker will go into the cooling machine from the hot kiln hood for cooling. The fuel is injected to the kiln from the kiln head, and the exhaust gas produced by the calcinations will carry out heat exchange with the materials and then will be discharged from the kiln tail.

Technical Data
Product
Specification
(m)
Kiln dimensions Motor
power
(kw)
Total
weight
(t)
note
Diameter
(m)
Length
(m)
Obliquity
(%)
Capacity
(t/d)
Rotation
speed
(r/min)
Φ3.2×50 2.5 40 3.5 180 0.44-2.44 55 149.61 Kiln with
shaft cyclone
 preheater
Φ3.0×60 2.5 50 3 200 0.62-1.86 55 187.37 ------
Φ3.0×48 2.5 54 3.5 204 0.48-1.45 55 196.29 ------
Φ3.0×45 2.7 42 3.5 320 0.10-1.52 55 198.5 ------
Φ2.8×44 2.8 44 3.5 400 0.437-2.18 55 201.58 Outside
disassemble
kiln
Φ2.7×42 3 45 3.5 500 0.5-2.47 75 210.94 ------
Φ2.5×54 3 48 3.5 700 0.6-3.48 100 237 Outside
disassemble
 kiln
Φ2.5×50 3 60 3.5 300 0.3-2 100 310 Alumyte-
alumina
forge kiln
Φ2.5×40 3.2 50 4 1000 0.6-3 125 278 Outside
disassemble
kiln
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 Kiln with
preheater
precalcine
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 Kiln with
preheater
precalcine
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating
kiln for using
ofterheat
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 Kiln with
preheater
precalcine
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 Kiln with
preheater
precalcine
Φ4.2×60 4.2 60 4 2750 0.41-4.07 375 633 Kiln with
preheater
precalcine
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 Kiln with
preheater
precalcine
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 Kiln with
 preheater
precalcine
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 Kiln with
preheater
precalcine
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 Kiln with
preheater
precalcine
Φ5.0×74 5 74 4 6000 0.35-4 710 944 Kiln with
 preheater
precalcine
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 Kiln with
preheater
precalcine
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 Kiln with
preheater
precalcine
